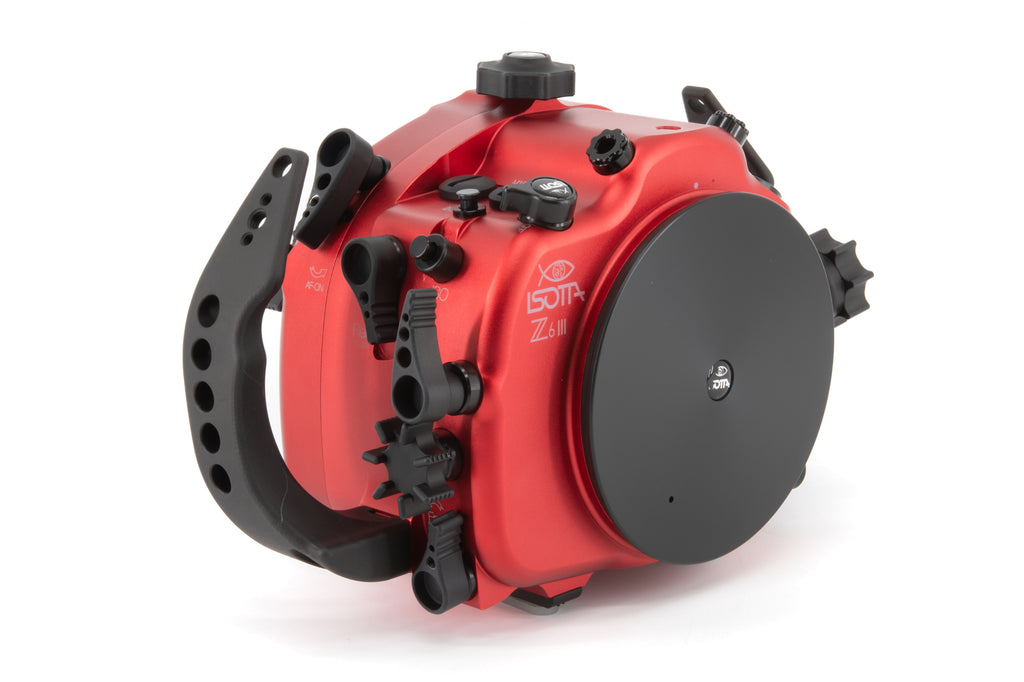

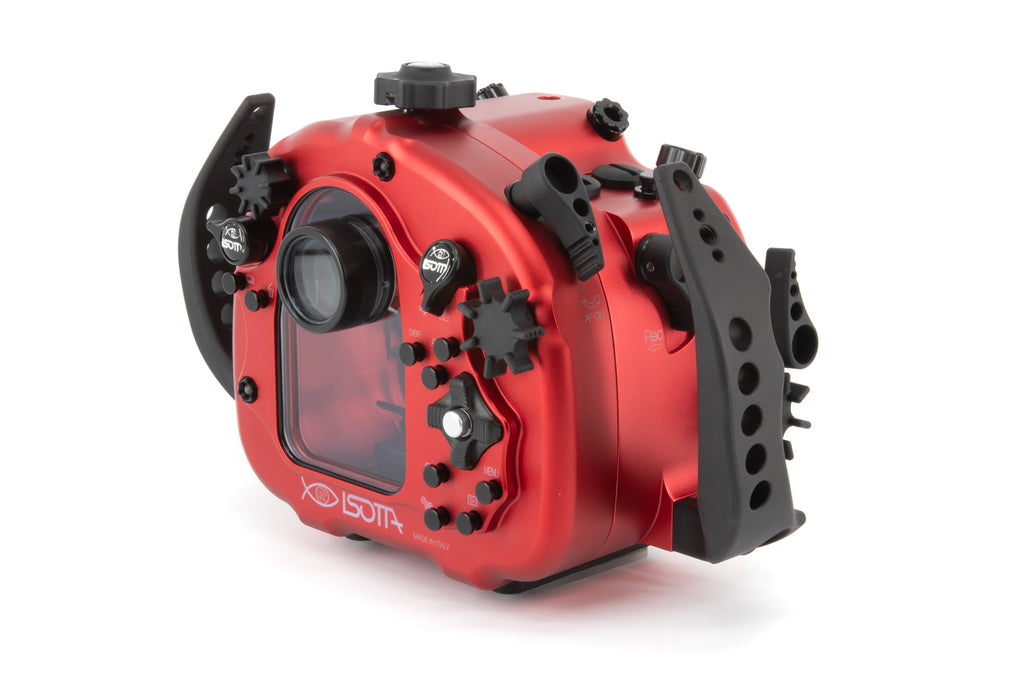

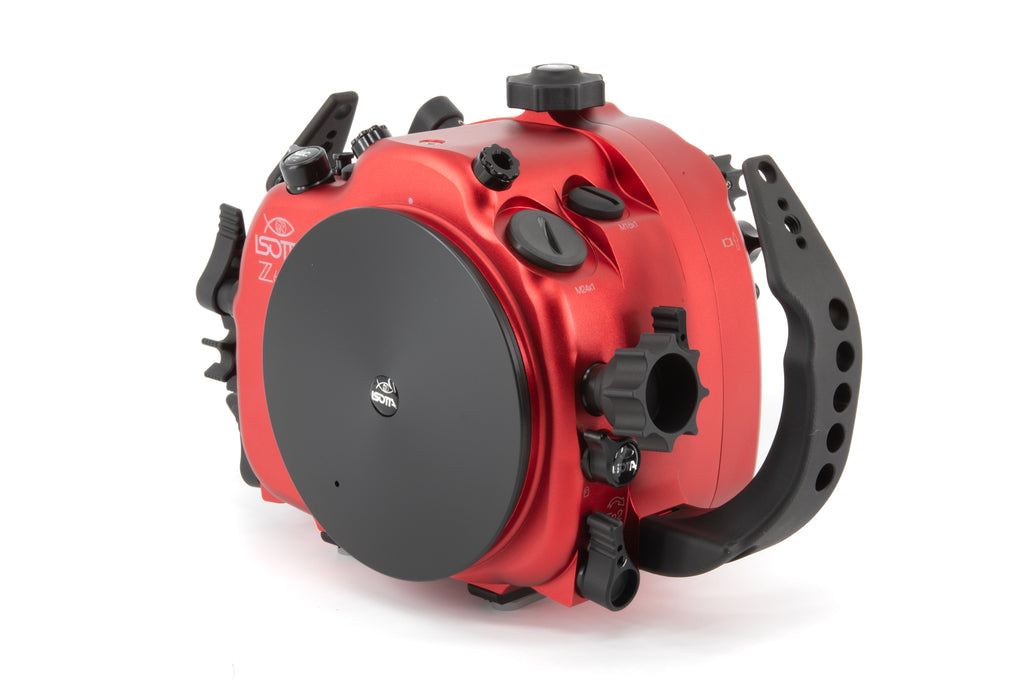

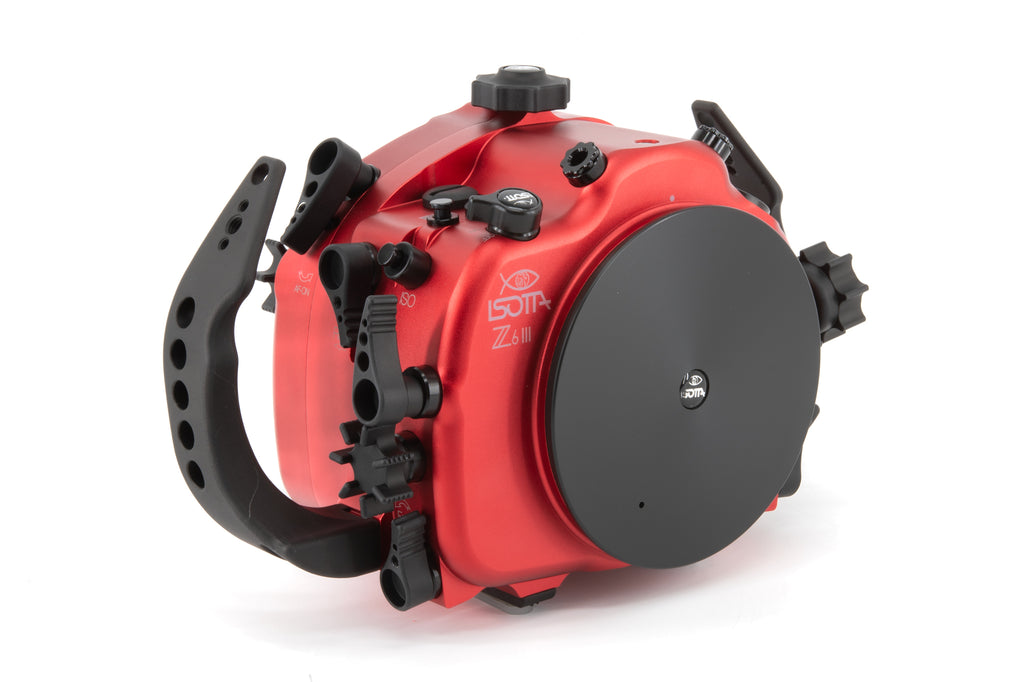

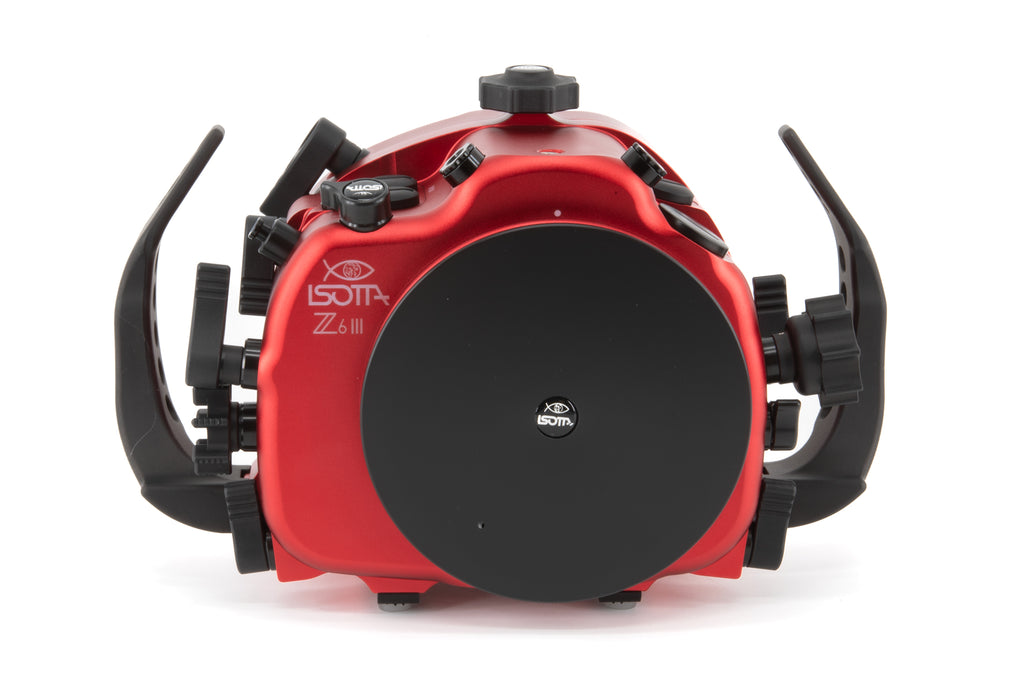

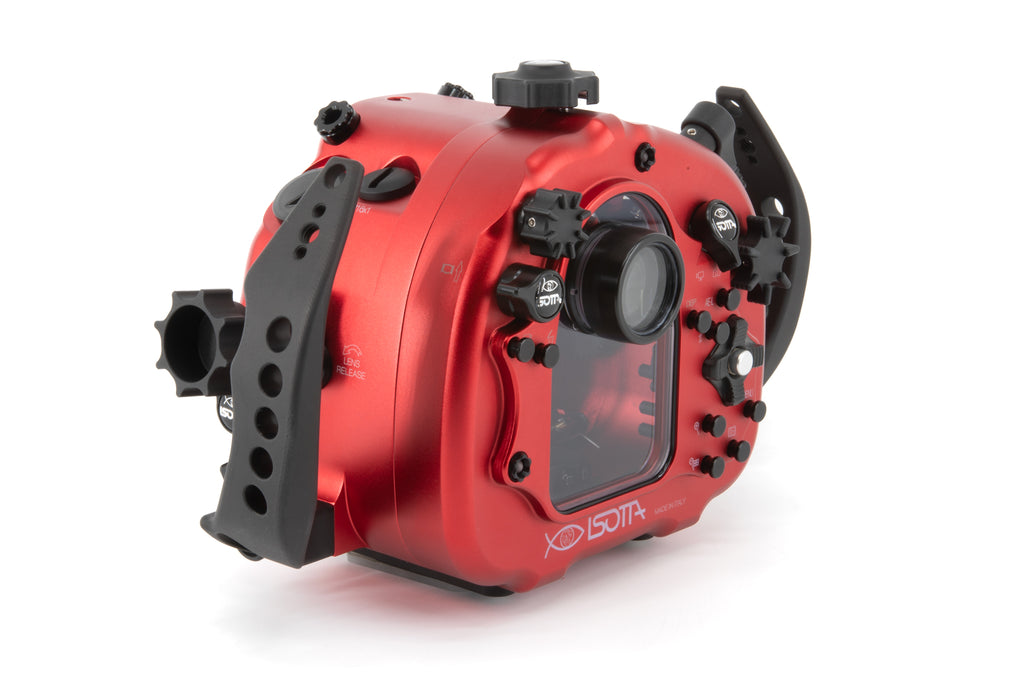

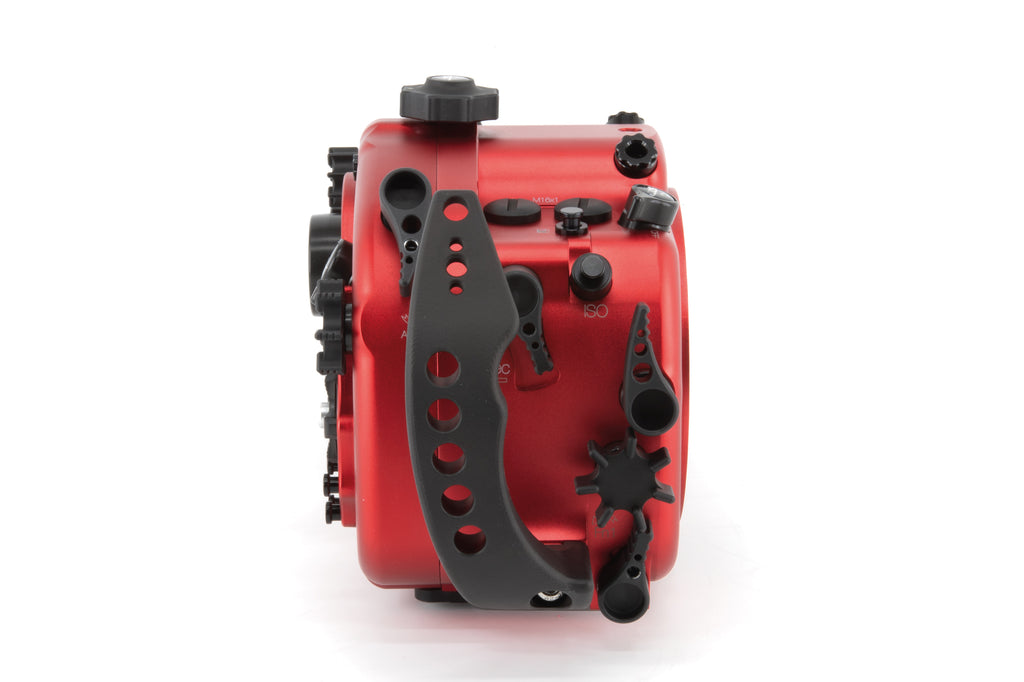

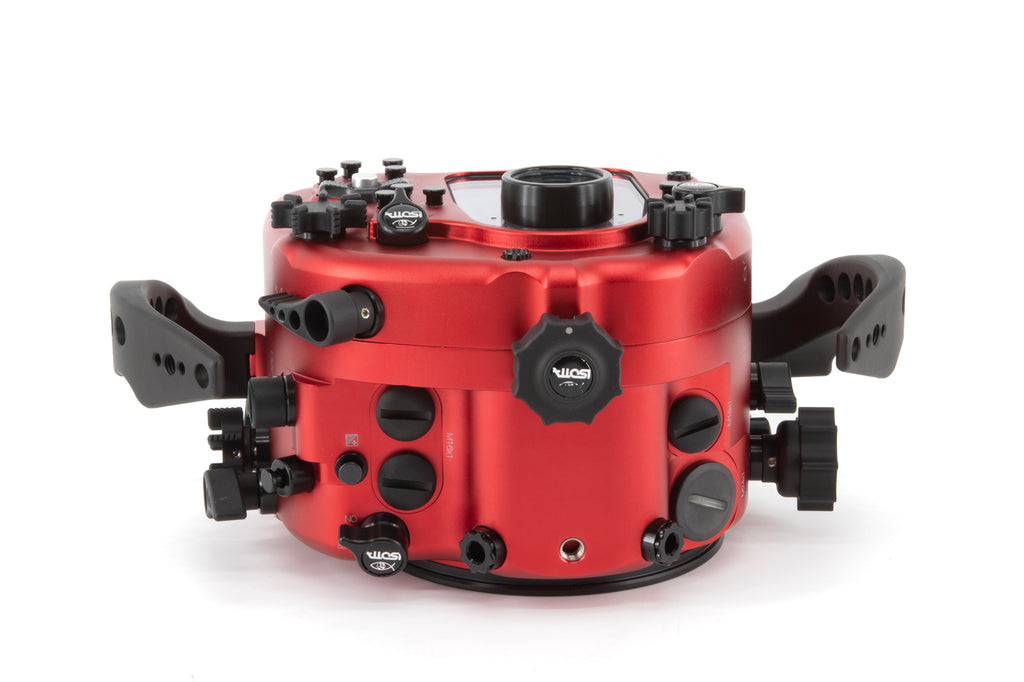

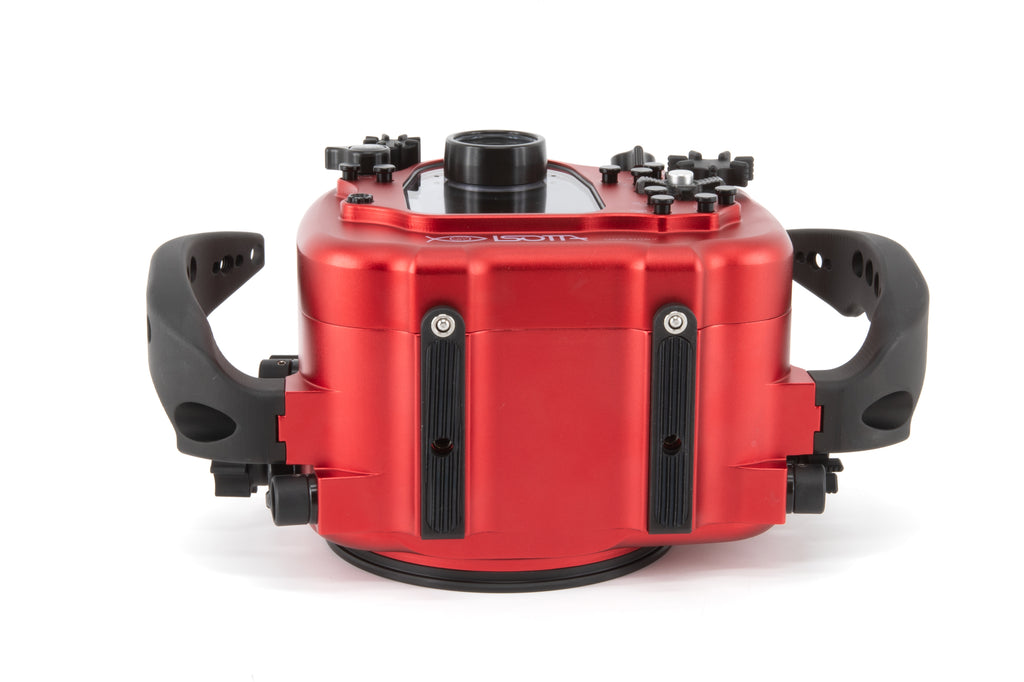

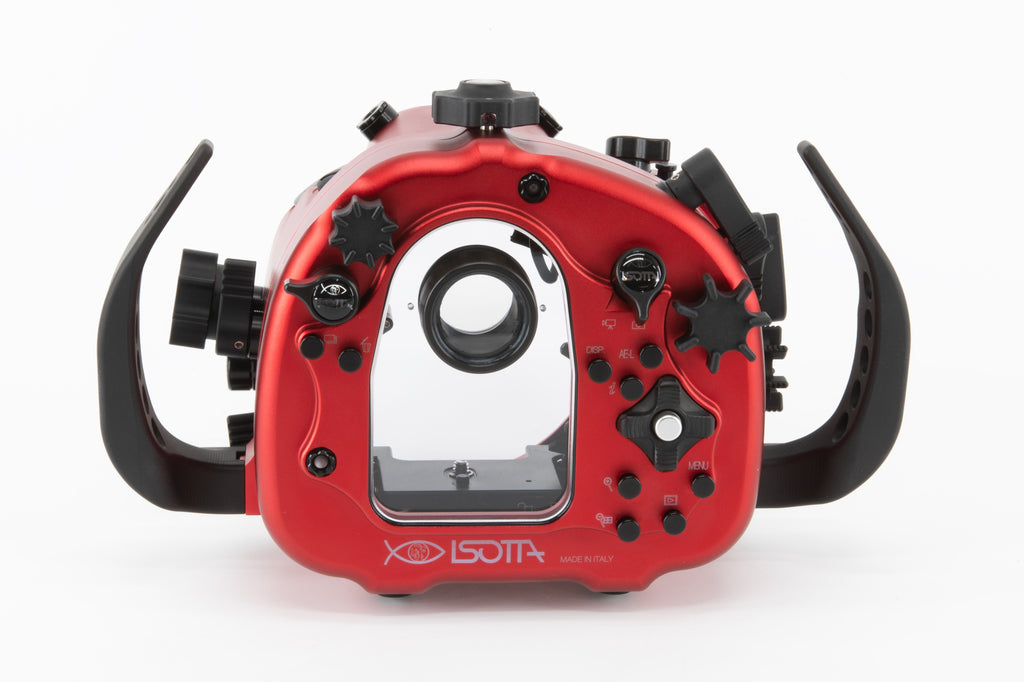

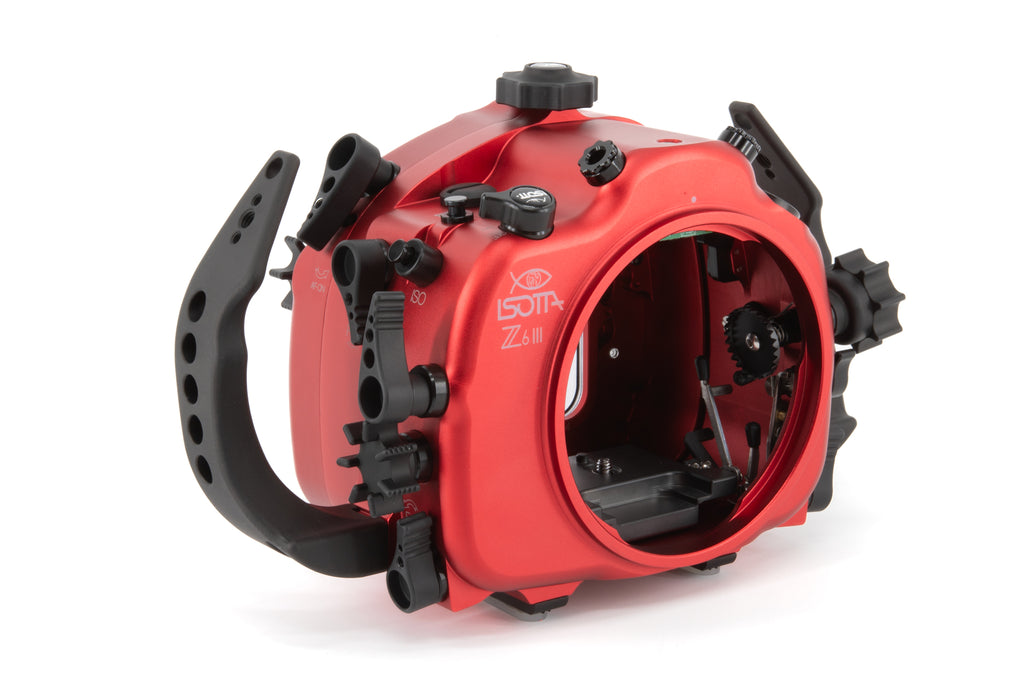

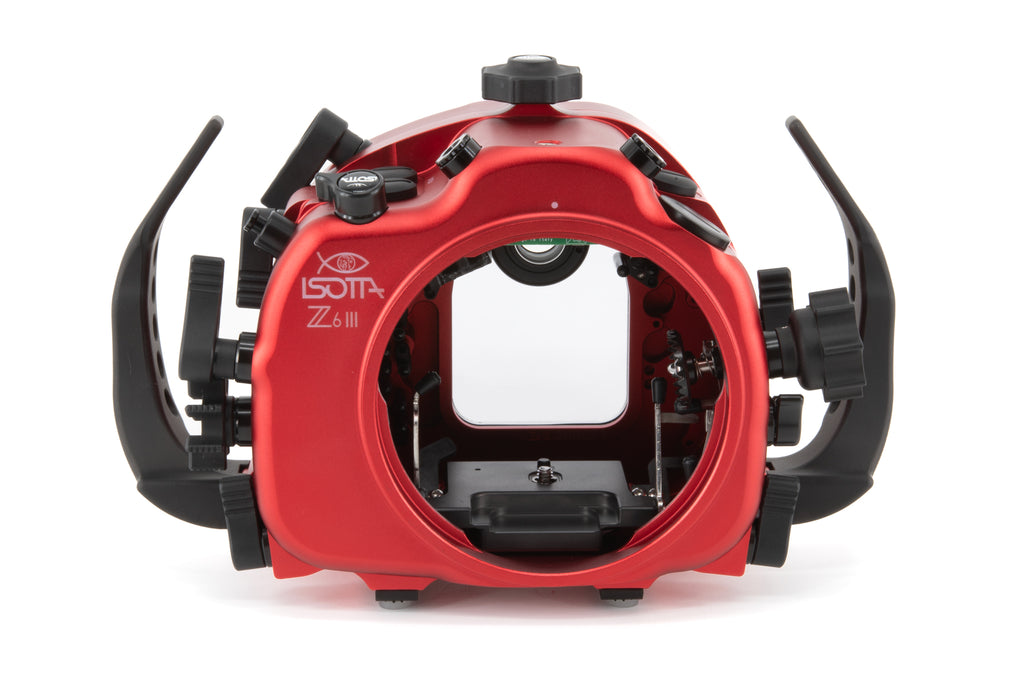

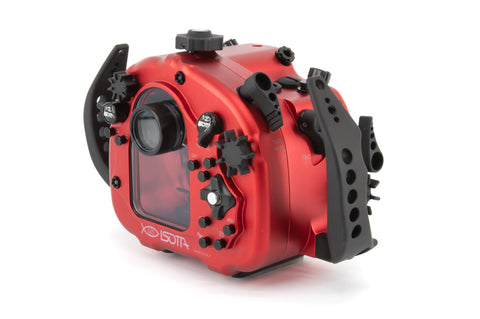

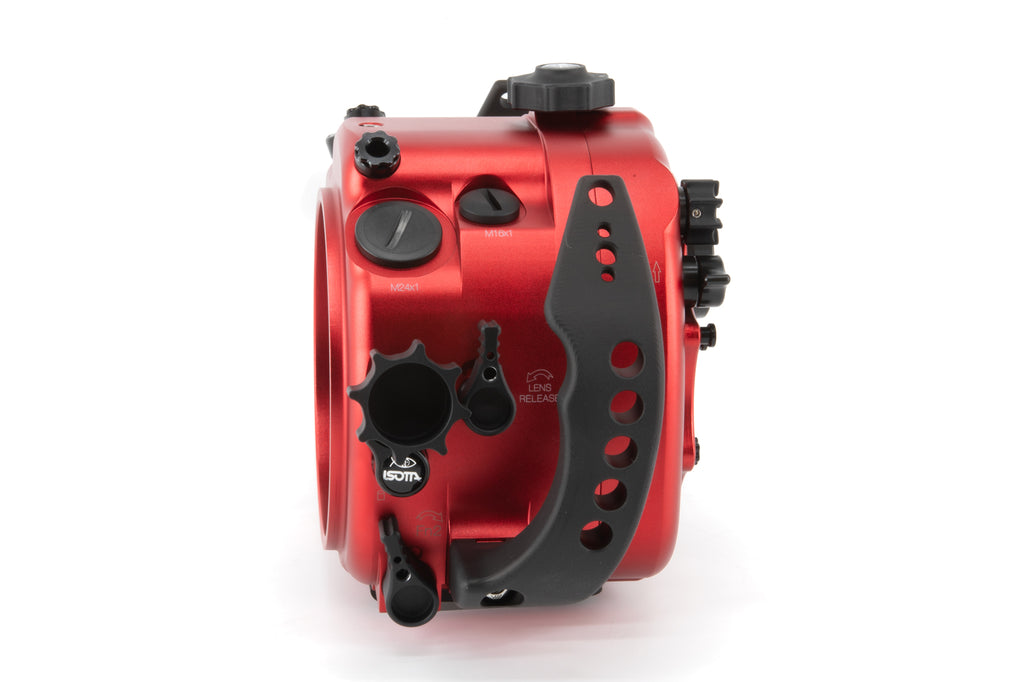

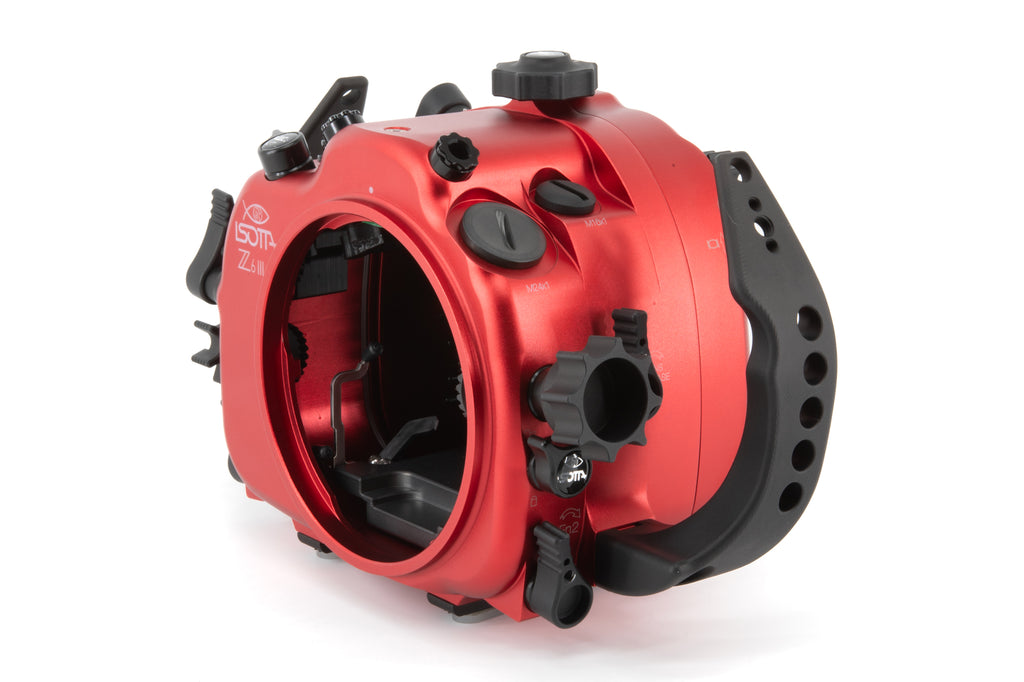

ISOTTA HOUSING for NIKON Z 6III
COMMANDS
- ON/OFF lever of the Nikon Z 6III;
- Ergonomic camera focusing and shutter lever, easy to use with gloves;
- Lens release lever;
- Zoom dial;
- Port safety lever;
- Fn1 button lever;
- Fn2 button lever;
- Movie-record button lever (REC);
- AF-ON button lever;
- Photo/movie selector lever;
- Monitor mode selection lever;
- Mode dial;
- Main command dial;
- Sub-command dial;
- Exposure compensation button;
- ISO button;
- Deleting pictures button;
- Playback button;
- Release mode button;
- AE-L button;
- Multi-selector joystick;
- OK button;
- MENU button;
- i button;
- DISP button;
- Thumbnail playback and focus point button;
- Zoom in button;
WHAT IS INCLUDED
- Housing;
- Front lid;
- Handles;
- Standard ISOTTA viewfinder;
- Humidity sensor;
- Fiber optic connection bulkhead (to use the flash needs an optional trigger);
- Replacement O-ring kit;
- Silicone lubricant 15gr / 0,5 oz;
- Warranty: 2 years manufacturer's (excluding batteries);
TECHNICAL DATA
- Red color anodized aluminum body;
- Ergonomic side handles, adjustable (via optional accessory);
- Two fiber optic connections standard (to use the flash needs an optional trigger);
- Three M16 holes and one M24 for using accessories such as vacuum systems, monitors, Nikonos or S6 bulkhead;
- Back housing completely detachable from the front housing;
- Tray with lock for the easy insertion of the camera;
- Single-hand closing knob for the back of the housing;
- Aluminum buttons and dials with engraved symbols identical to camera controls;
- Wide back display viewfinder glass;
- Standard ISOTTA viewfinder;
- Double O-Ring seals on all buttons and removable parts;
- Moisture sensor with LED indicator (replaceable battery);
- Removable port B120 bayonet;
- Safety lock on the porthole to prevent accidental opening;
- Wide, rubber covered feet for solid footing on boat floors or sea floor;
- M8 hole located on upper side of the housing for various accessories such as focus lights;
- Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods;
- Prepared for ISOTTA vacuum system (not included);
- External viewfinders can be mounted, ISOTTA and INON X-2 compatible;
- Working depth: 100 meters;
- Weight: 2.700 gr;
- Sizes (LxHxP): 292mm x 186mm x 138mm;
SPARE PARTS
- 4686 - Set O.R. for Nikon Z 6III housings;
- 1895 - B120 housing front lid;
- 1905 - M16X1 cap;
- 3352 - M24X1 cap;
OPTIONAL
- Hotshoe for Nikon D500 and Nikon Z 6III housings;
- Vacuum system;
- N5 bulkhead;
- S6 bulkhead;
- Vacuum system ISOTTA;
- Handles extension;
- ISOTTA right or angled viewfinder;
- Upper tray - MEDIUM;
