Description

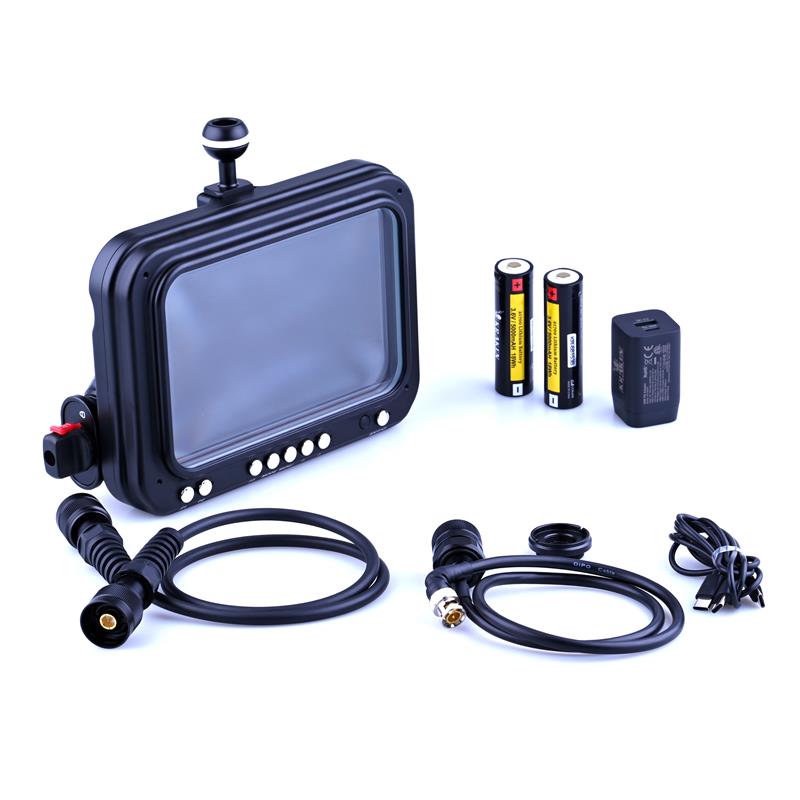

Boasting a whopping 2200 nits of brightness, you can easily see the screen even in full sunlight! New 2 x 21700 USB-C chargeable batteries. Dramatically improves size and weight of the monitor. When it does come time to charge though, a simple open of the sealed battery compartment allows for easy removal or swap, no need to open the entire monitor housing! USB C port is built directly into the battery, making charging a breeze and no need for separate battery cradles. The monitor can take up to a full 4K input signal. M16, and M24 bulkhead required to pass HDMI cable through. Full sized, mini, and micro HDMI adapters included depending on your camera needs. Ball mount also included for easy mounting on your camera system and for those special situations, the screen display CAN be flipped, both horizontally and vertically, if need be.
Monitor Software Features:
– Histogram
– False colours
– Zebra exposure
– Focus assist
– Nine grid
– Embedded audio
– Center marker
– Safe frames
– Colour temperature
– Picture settings
– Colour settings
Full Specifications:
Technical Parameters
– Panel Size 7″ IPS
– Resolution 1920×1200 pixels
– Dot Pitch 0.07875(W) x 0.07875 (H)mm
– Aspect Ratio 16:10
– Brightness 2200cd/m2
– Contrast 1200: 1
– Viewing Angle 80°/80°(L/R) 80°/80°(U/D)
– Backlight LED
– Input SDI
– Output SDI
Power
– Consumption ≦18W
– Unit Size 220Lx147Hx90D (mm)
– Unit Weight 2214g on land/560g underwater (With battery)
– Mount Points 1/4"-20 Thread Point (For mounting ball )
– Working Temperature -20℃~55℃
– Storage Temperature -30℃~65℃
– Depth Rating 80 meters/266ft
